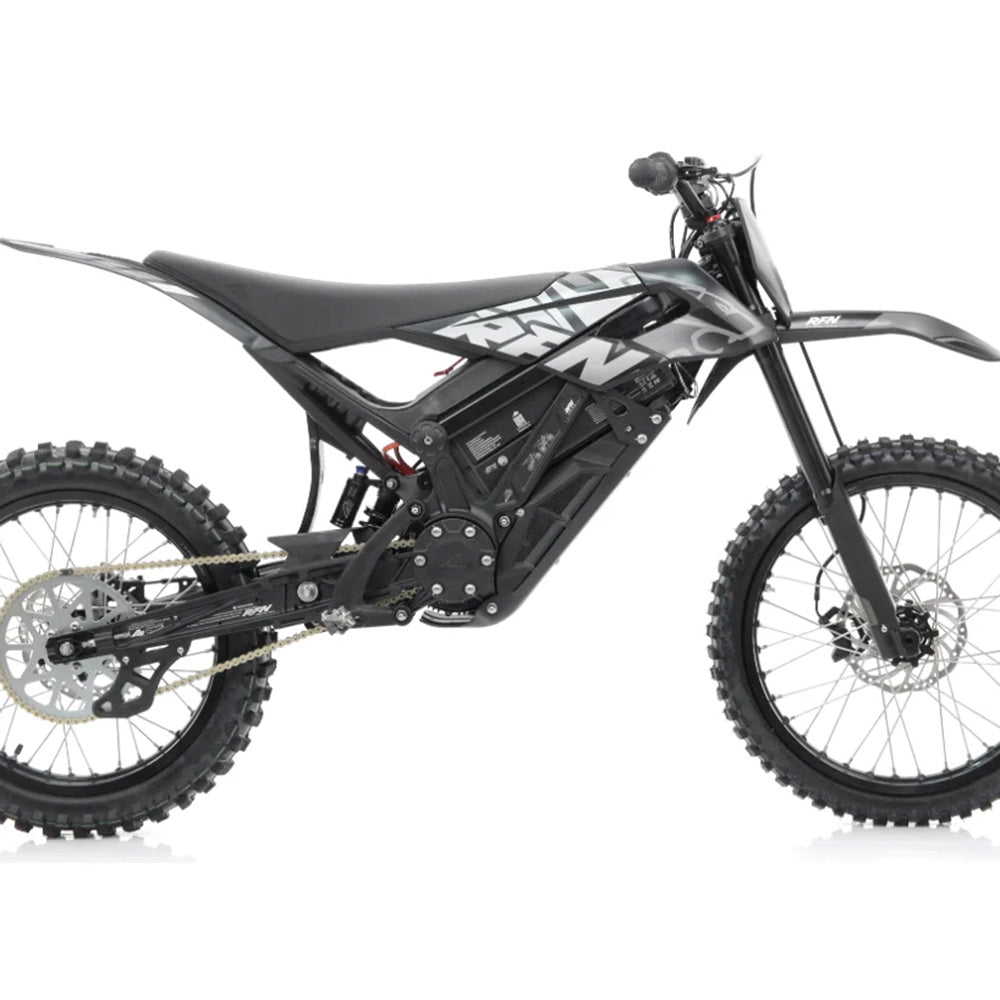

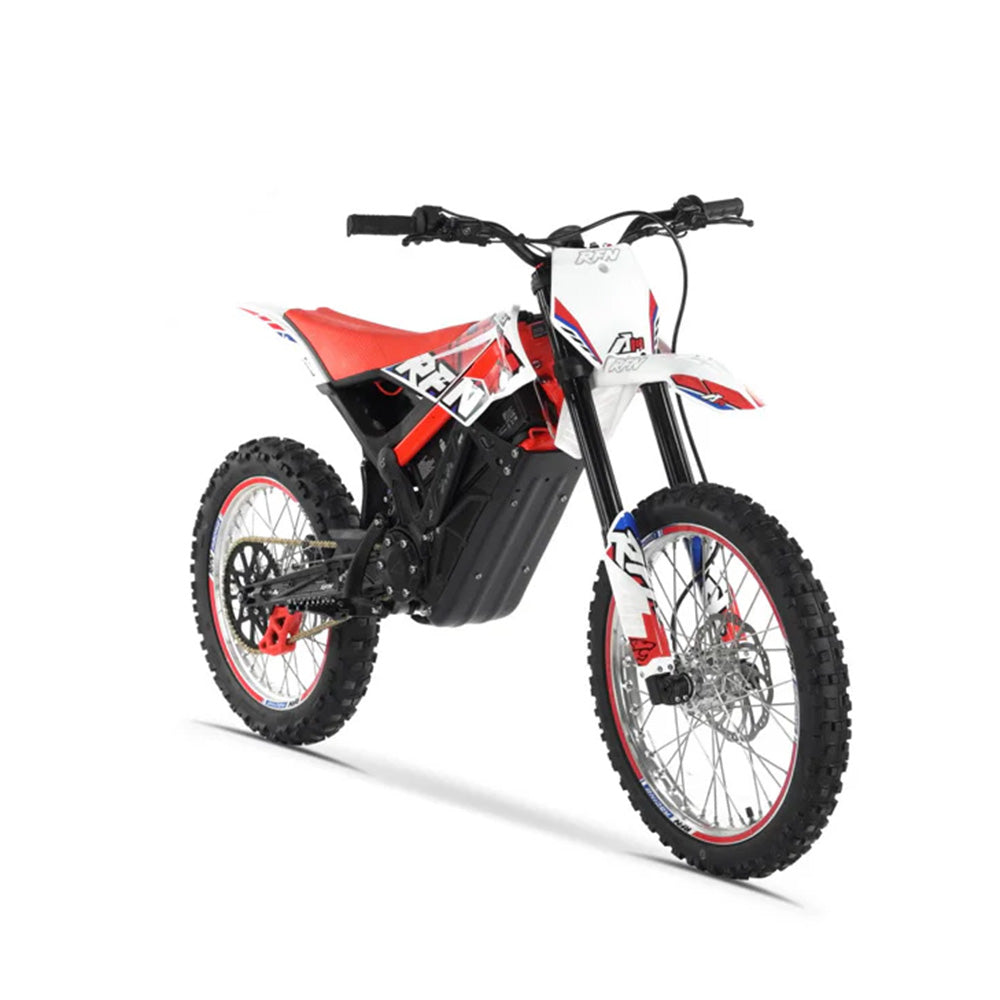

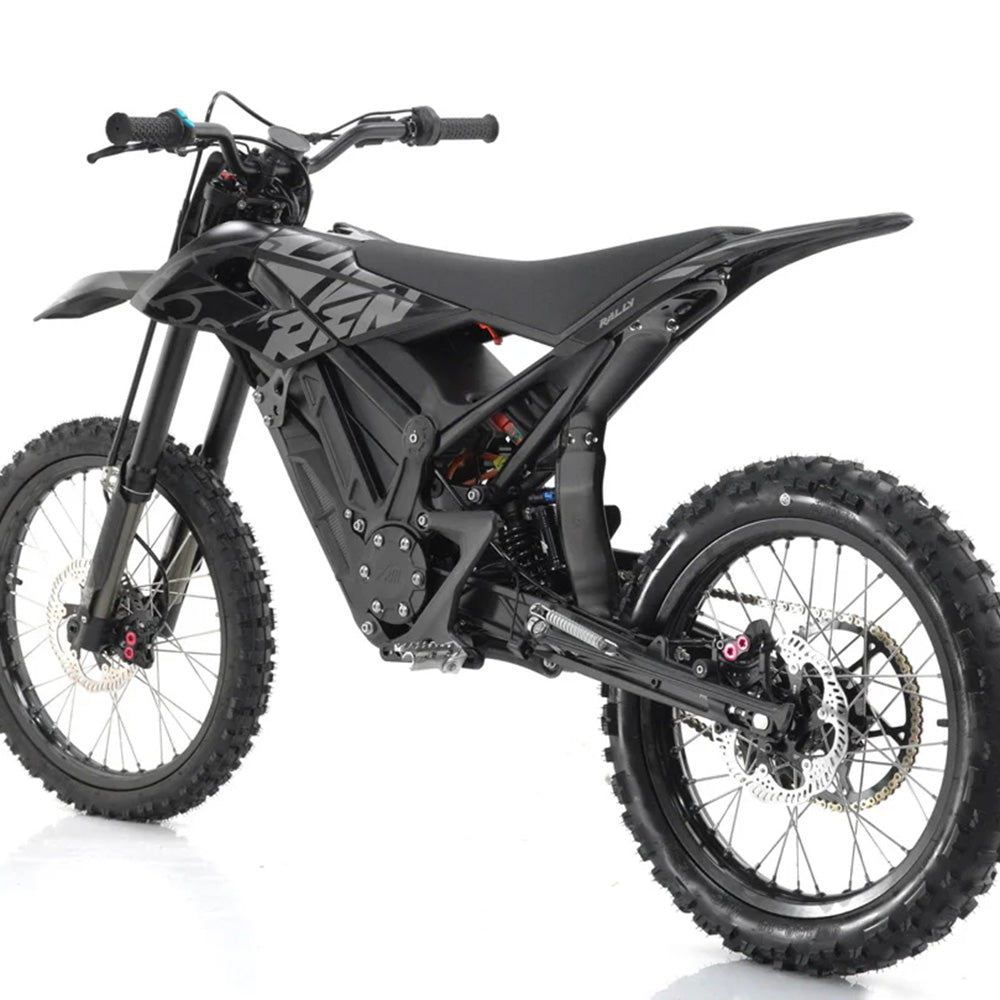

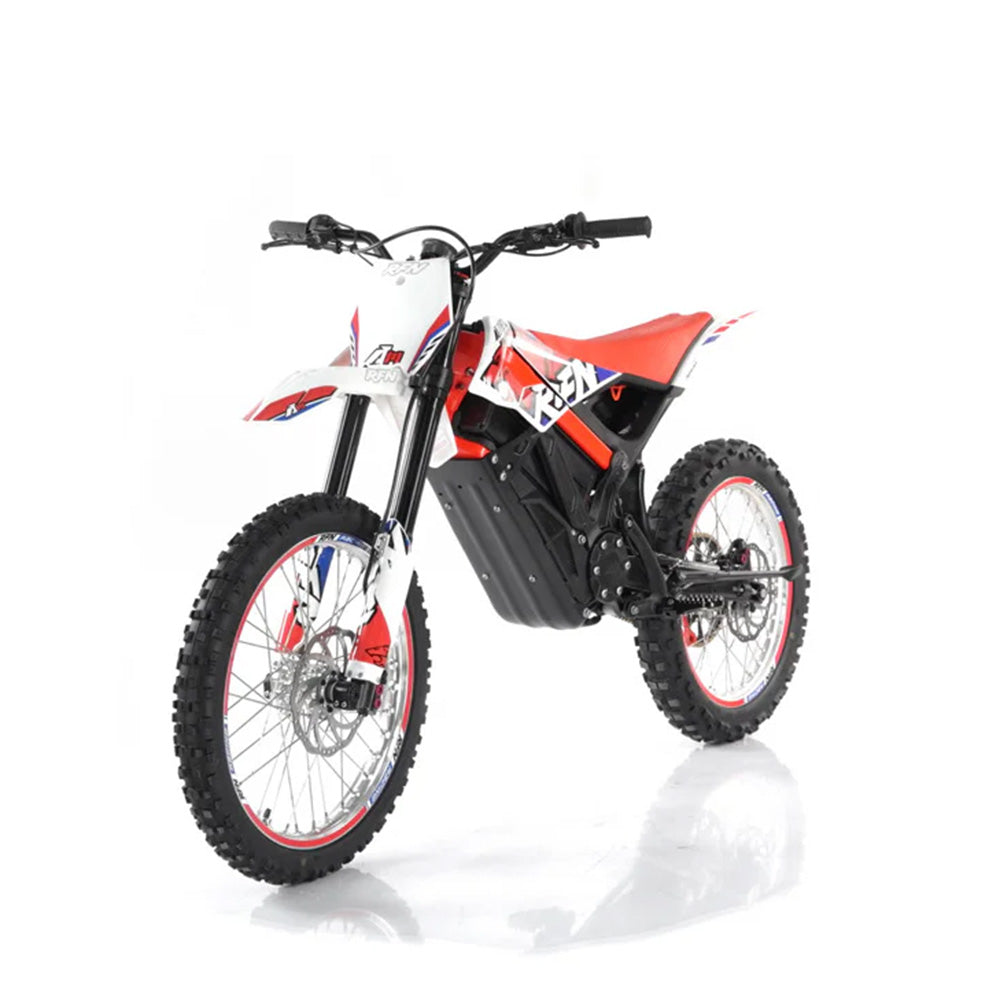

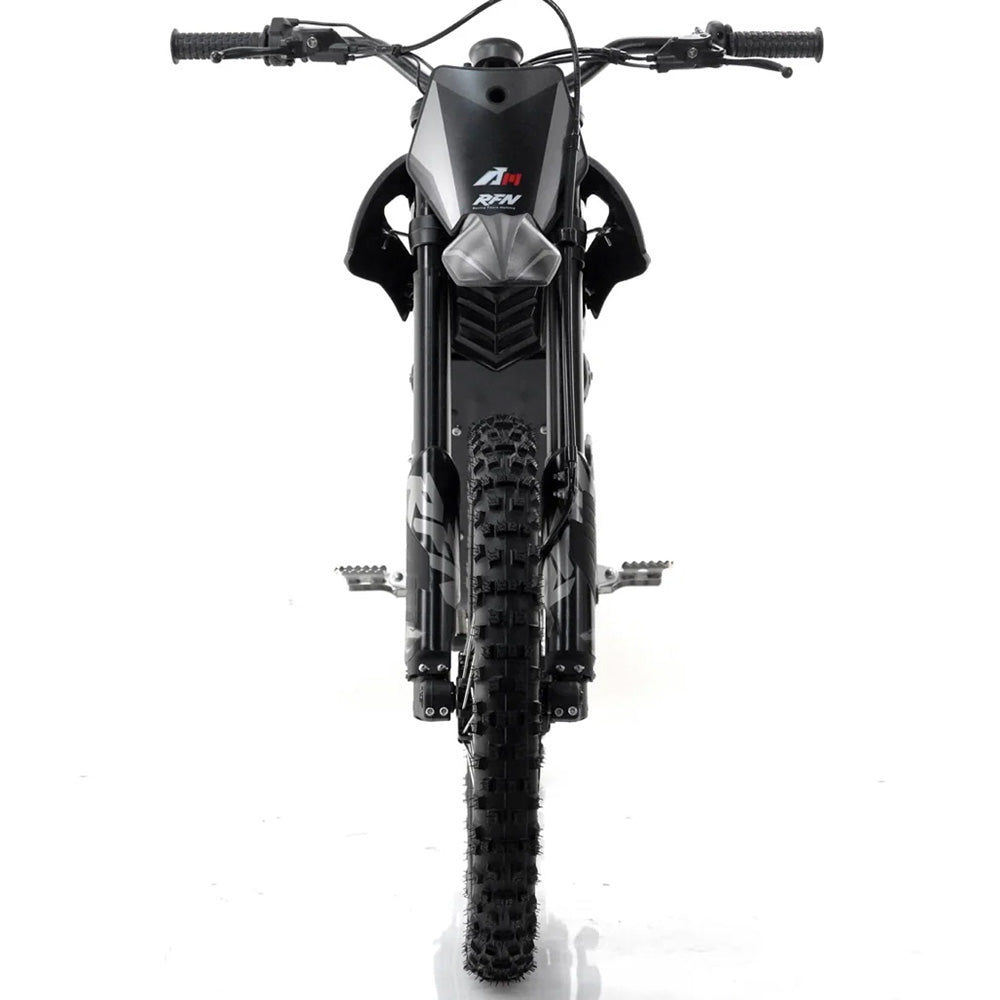

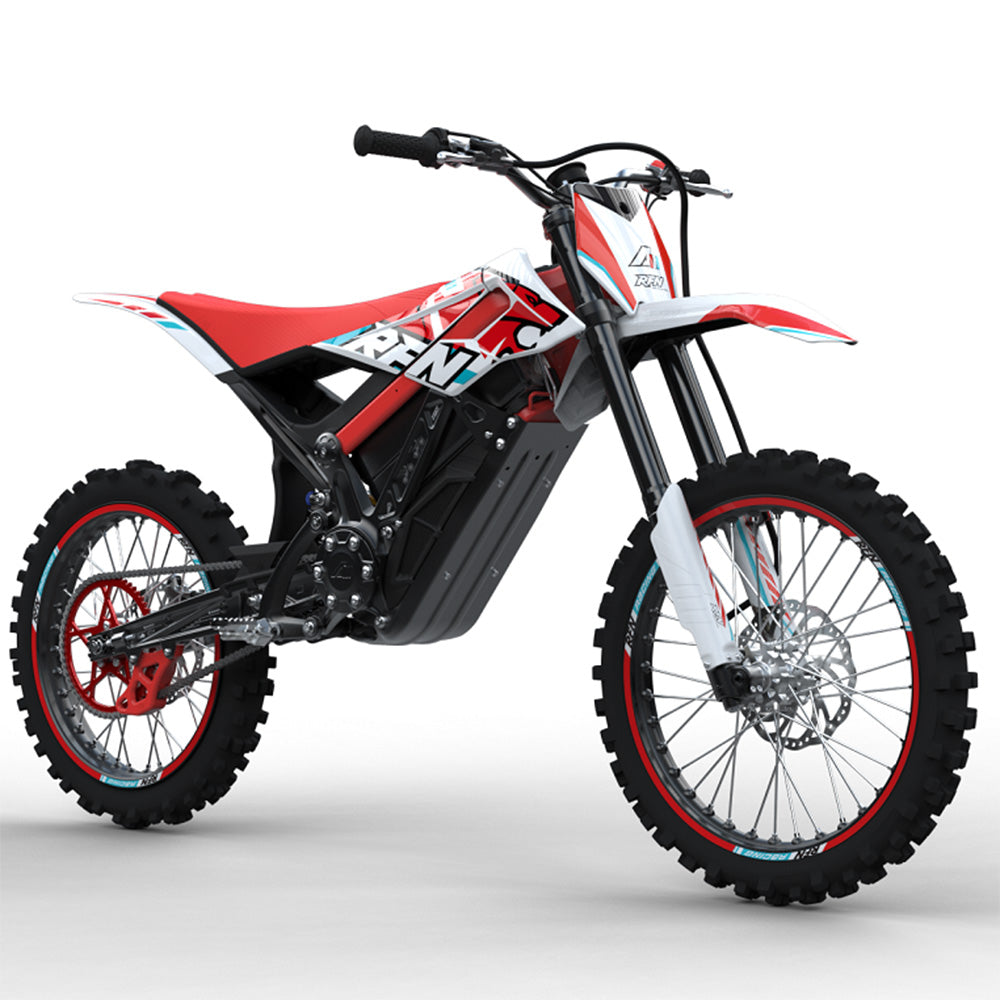

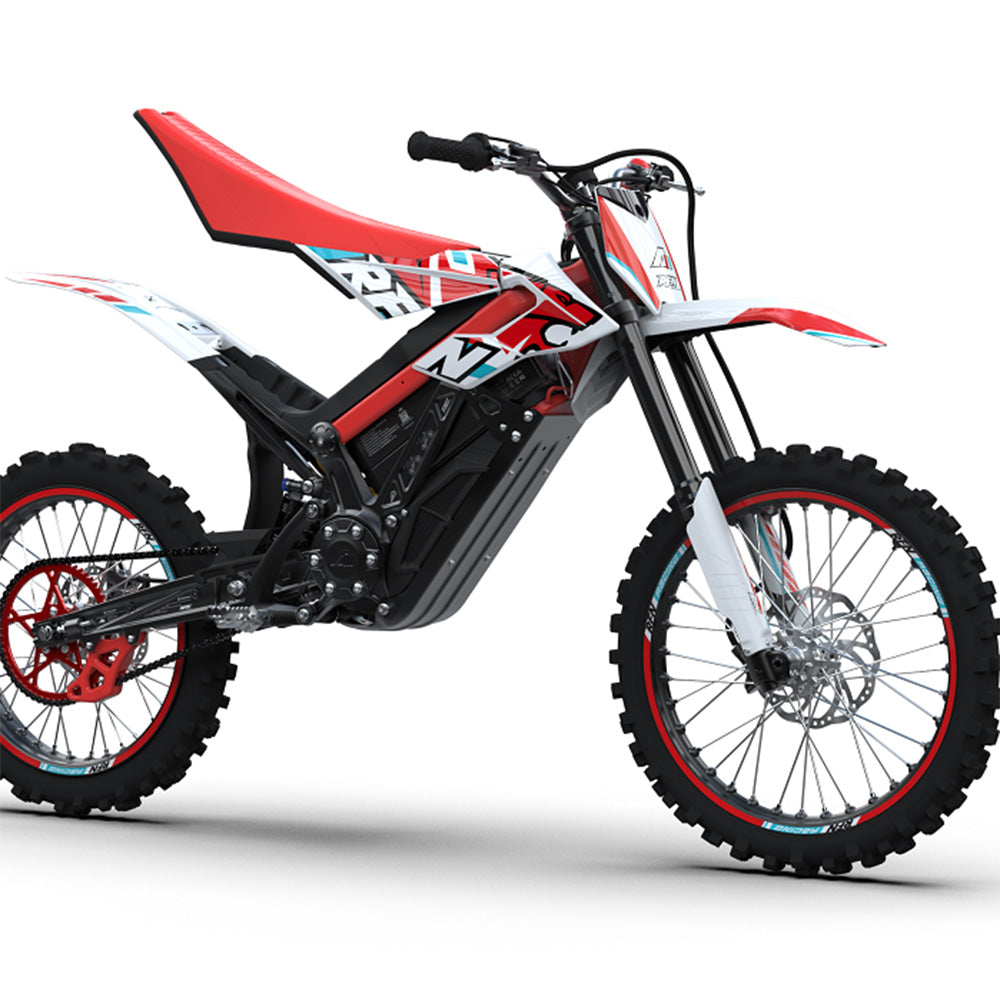

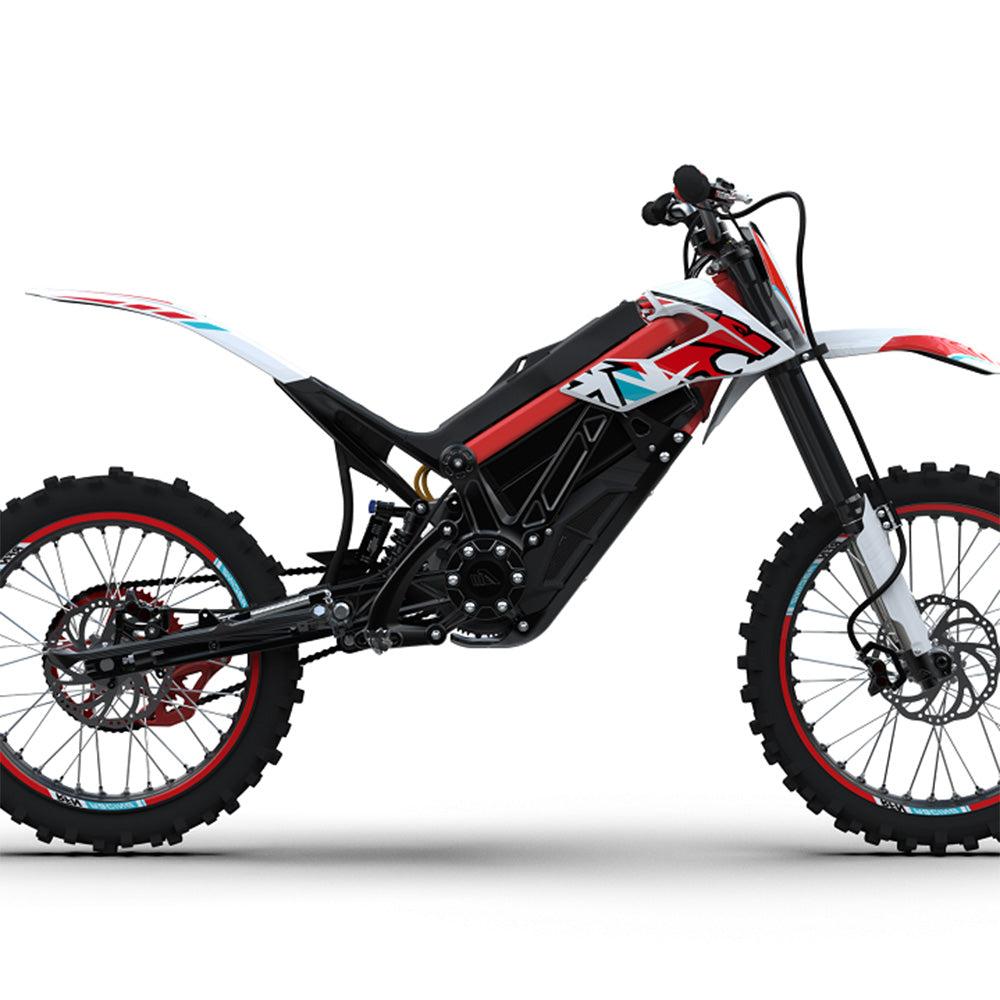

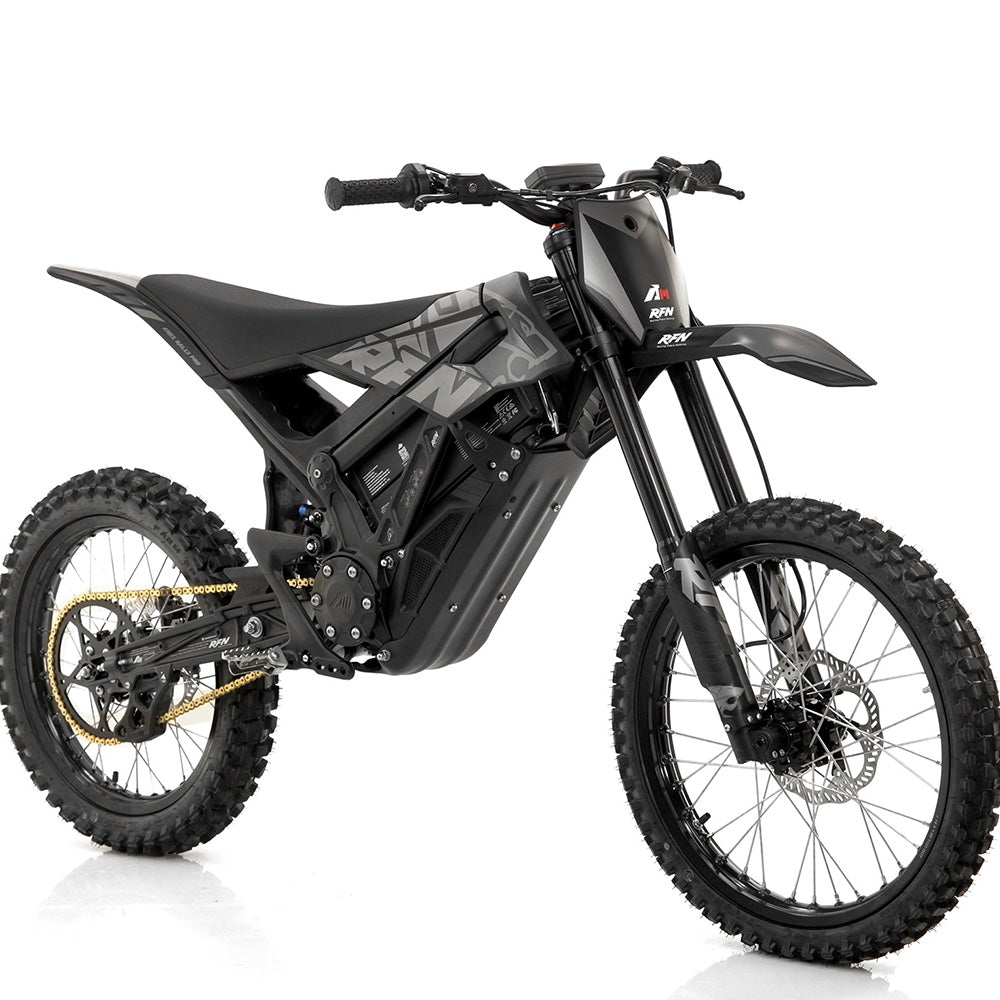

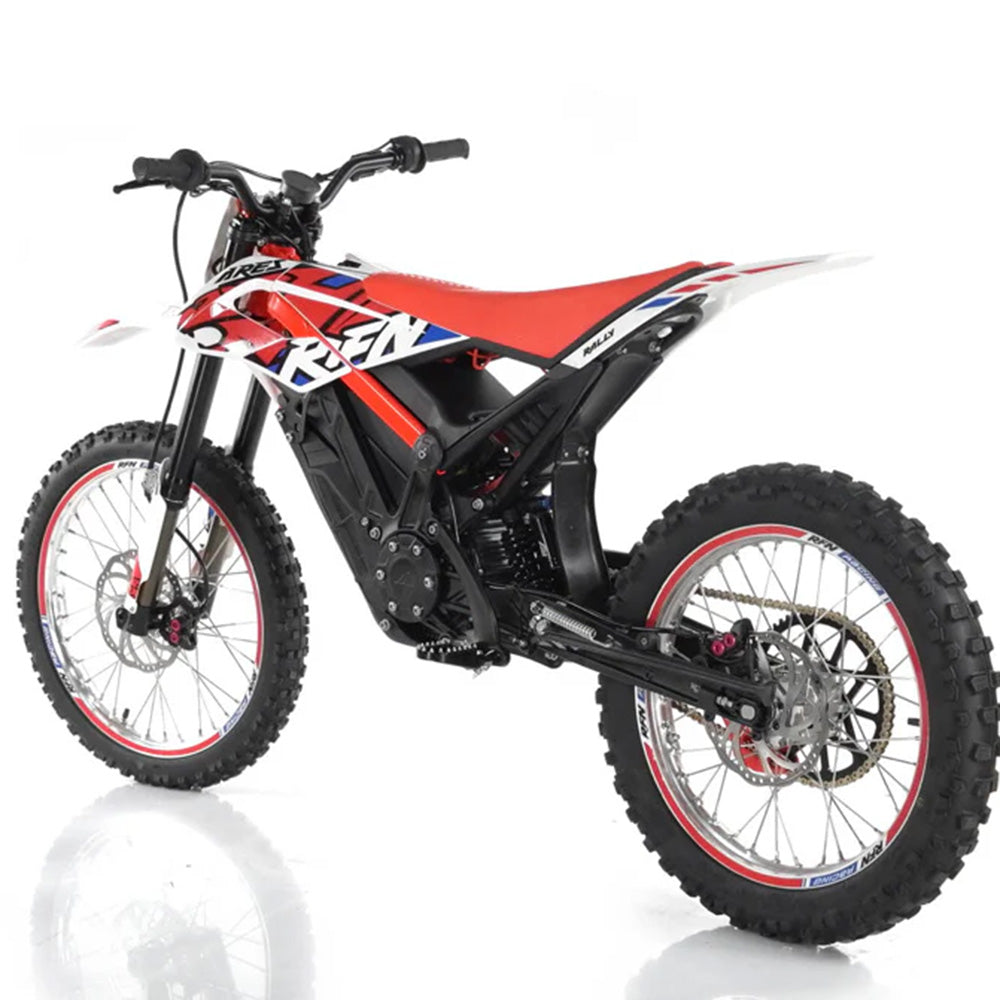

Apollo RFN Rally Pro
The Ares Rally features a 35ah 74v battery and power system with an impressive peak power range of 12.5kw ,providing great speed and torque. With its cutting-edge suspension system, every ride becomes a seamless and comfortable experience, effortlessly absorbing shocks and bumps while providing optimal control

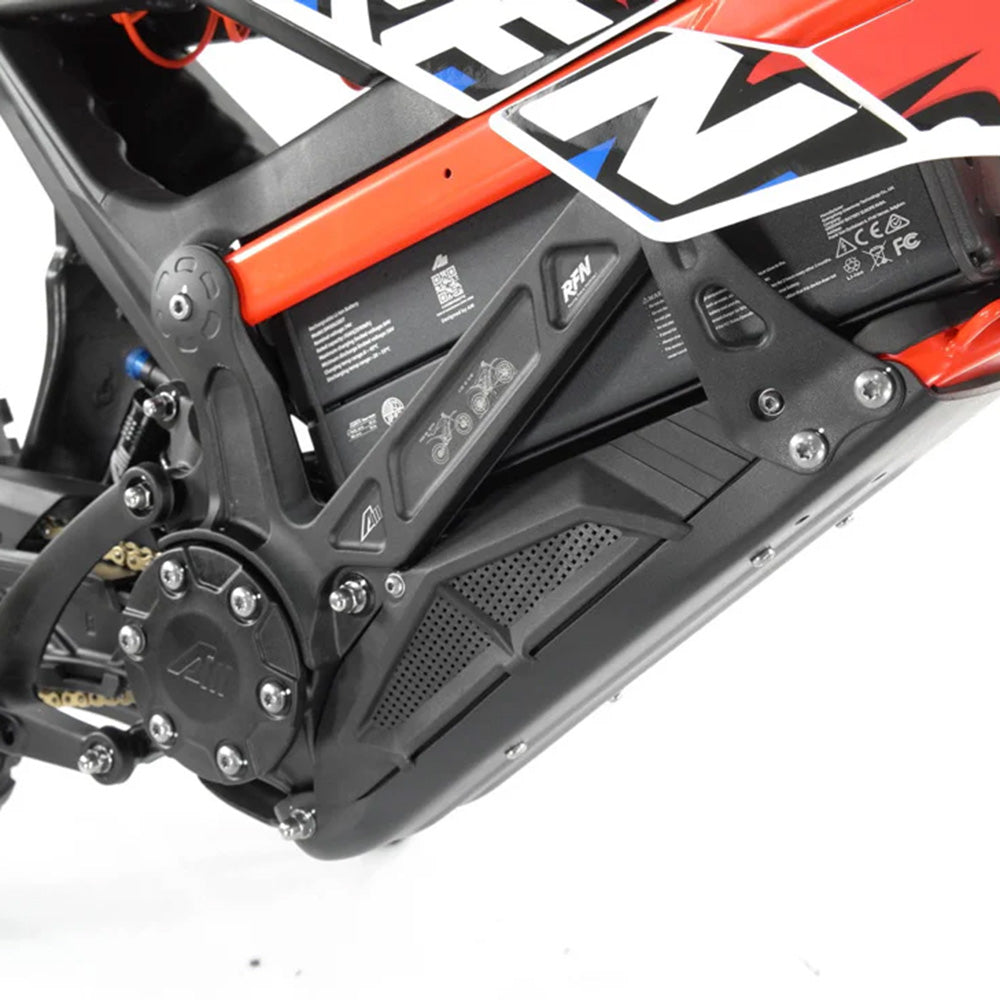

Battery
Capacity: 35Ah / 2590Wh
Cells: LG Premium 21700 lithium cells
Features: Removable, can be charged when installed in bike or separately.
Voltage (nominal): 74V
Brake modes
Brake mode 1: Motor brake with energy regeneration
Brake mode 2: Freewheel, no motor brake

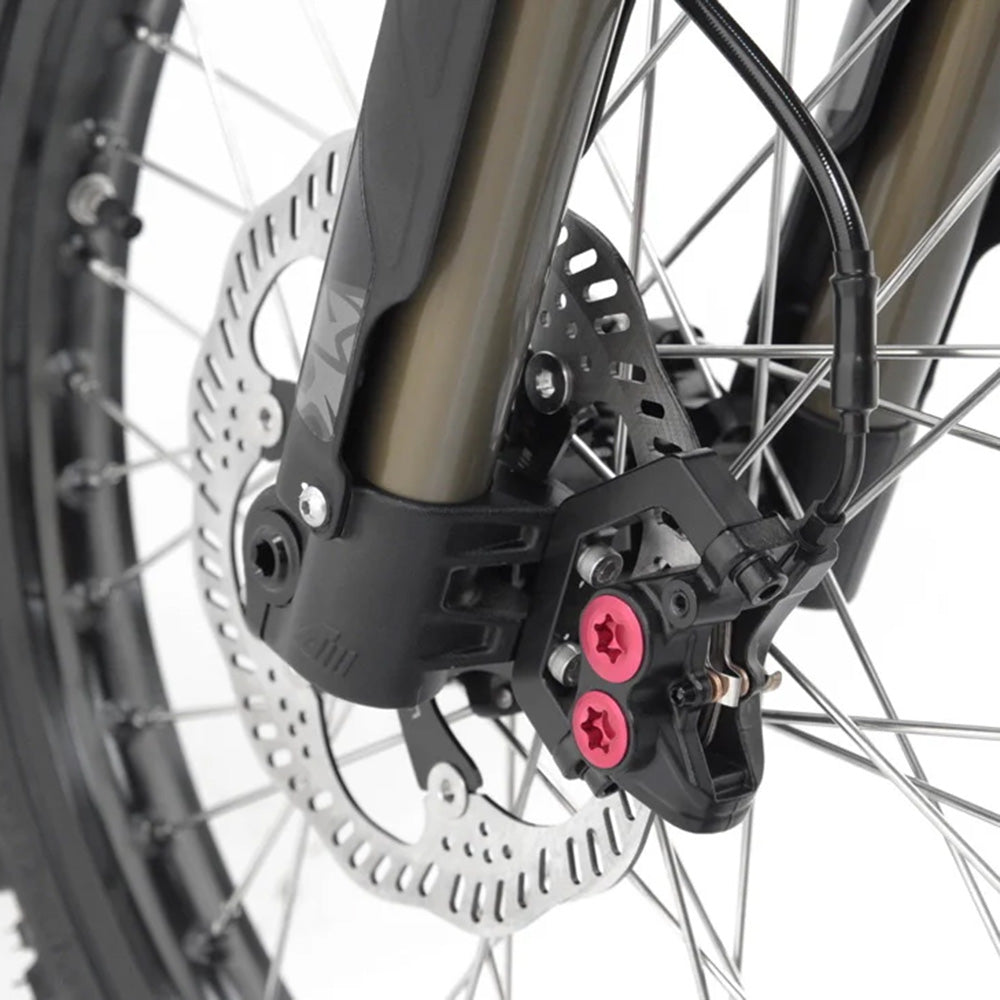

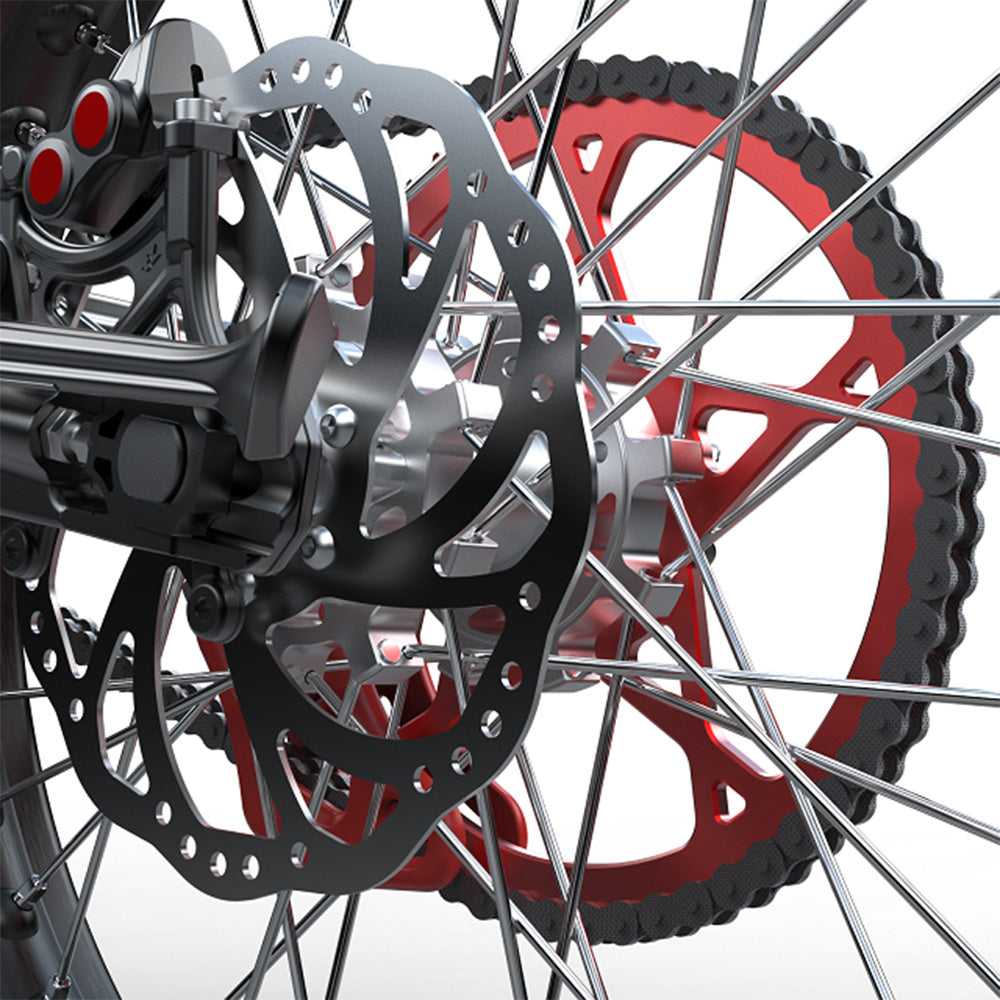

Brakes
Disc: Suspension disk, 210mm diameter, 2.3mm thickness
Type: Disc brakes, two piston calipers, alloy levers. Hand lever for front- and rear brake.

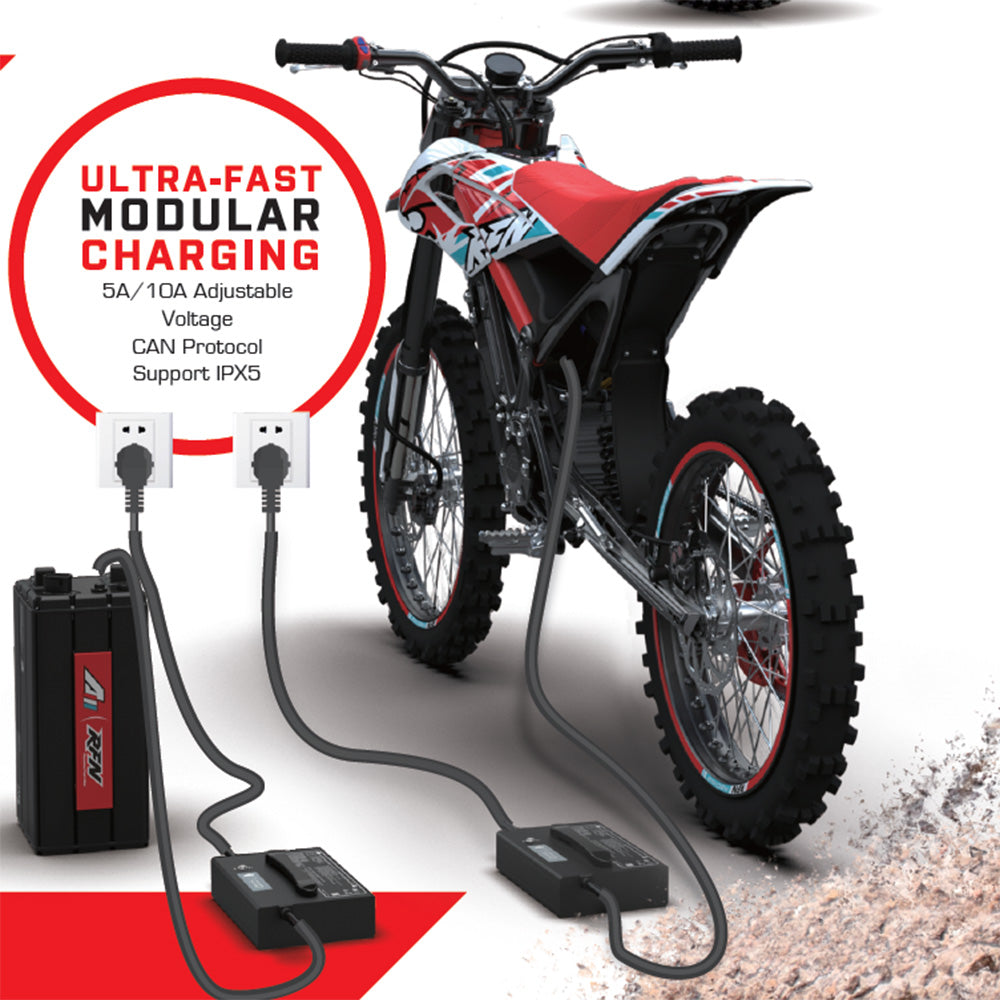

Charging
0-100% 3 hours
0-80%: 2 hours
Type:Variable voltage External charger for 100V-240V outlets
Controller
Features: Best-in-class power density and state-of-the-art motor control algorithms.

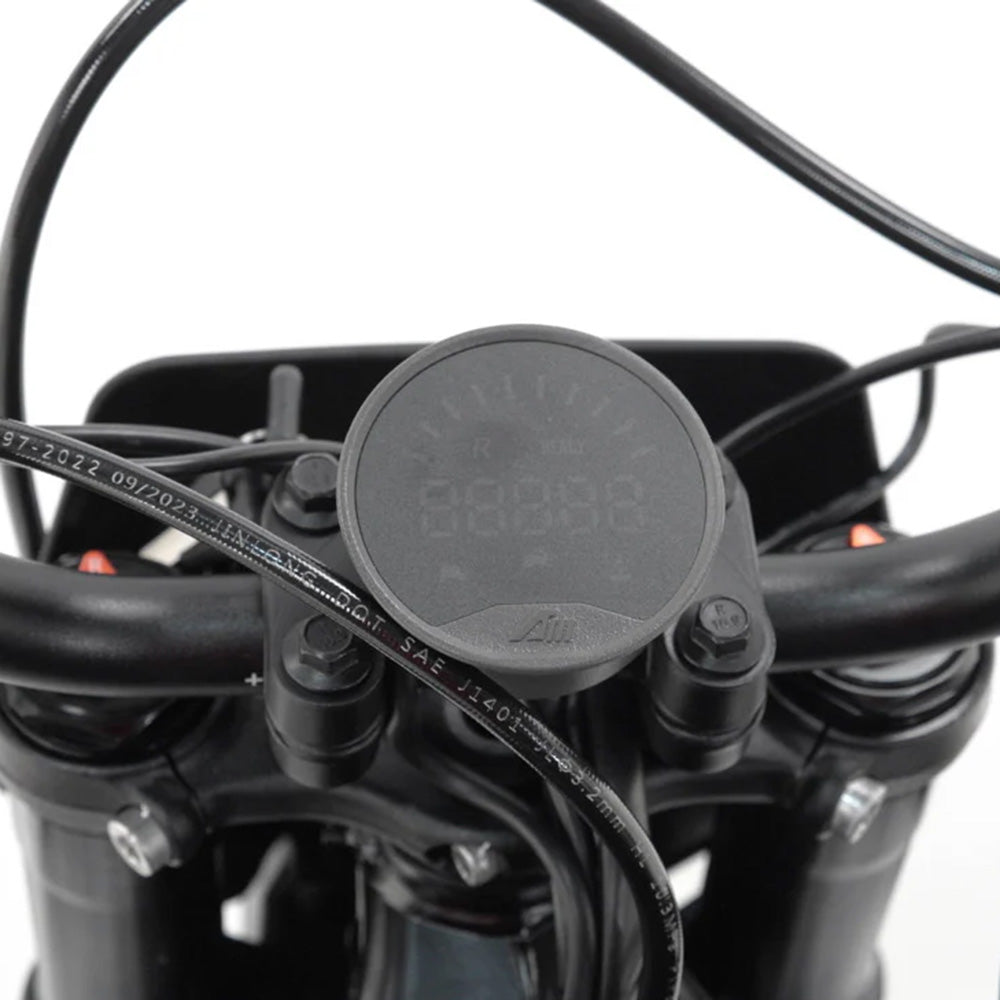

Meter LED instrument panel
Drivetrain
Chain: 420 chain with DX
Electric motor: Internal Rotor Permanent Magnet Synchronous Motor
Front sprocket: 13-58 T
Nominal power: 5 kW
Peak power: 12.5 kW**
Rear sprocket: 58 teeth
Torque (motor axle): 58 N·m
Torque (wheel): 305 N·m
Type: Direct drive, chain
Dimensions
Fork angle: 24°
Ground clearance: 320mm - 12.60''
Offset: 15mm in triple clamps, 45mm in forks
Seat height: 860mm - 33.86''
Trail: 111mm - 4.37''
Wheel base: 1330mm - 52.36''
Fenders & Bodywork
Material: PP/ABS plastic

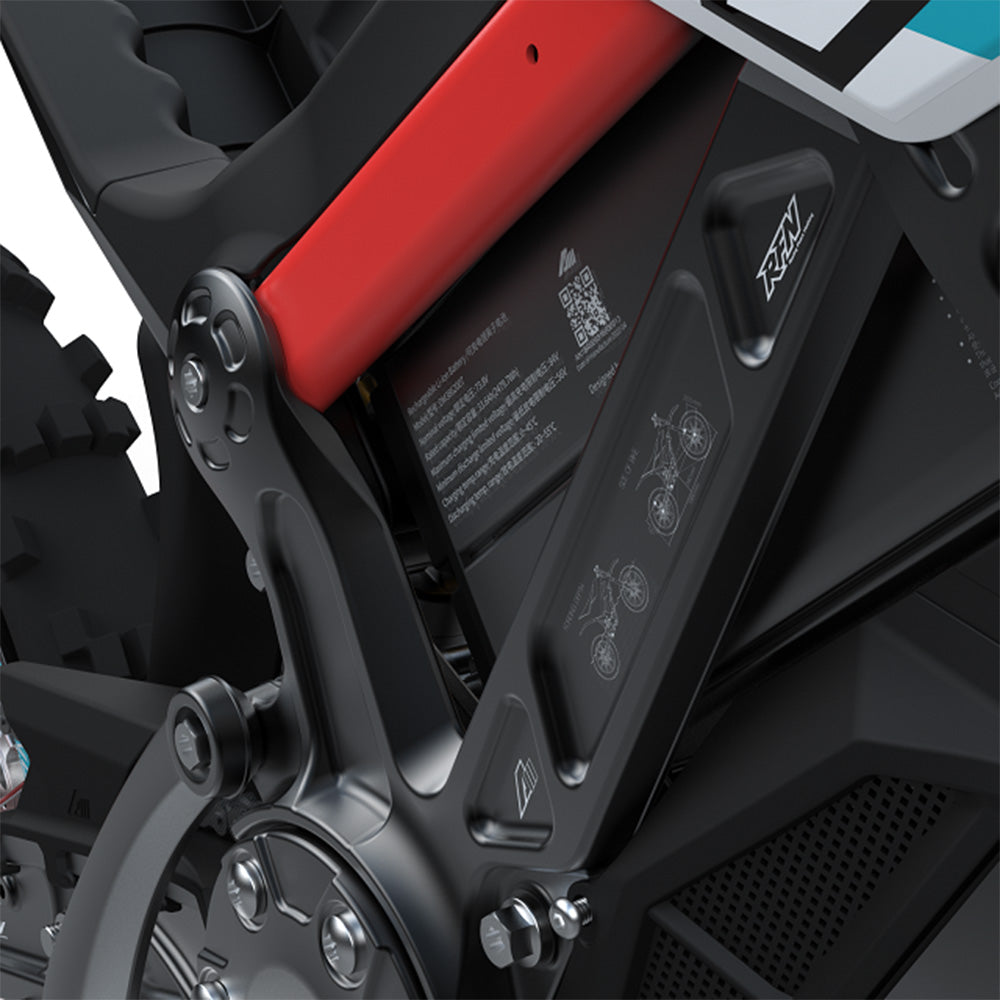

Frame
Build: 6082 aluminium - extruded, forged and CNC machined

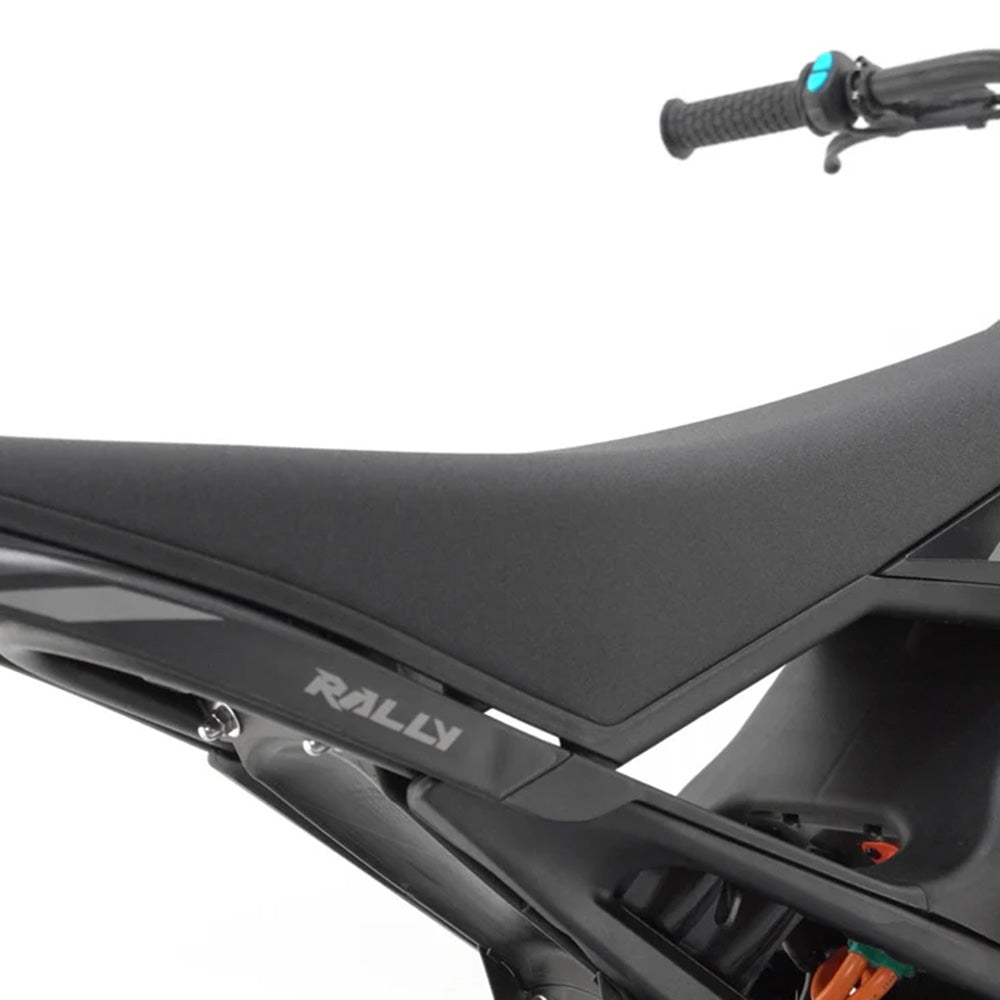

Seat cushion Red, Integrated foaming process
Front suspension
Travel: 200mm
Type: Upside-down air forks featuring 45mm stanchion tubes for extra rigidity and strength, Double shoulder adjustable front damper.
Handlebar
Material: 6061 aluminum
Rise: 22mm
Width: 760mm

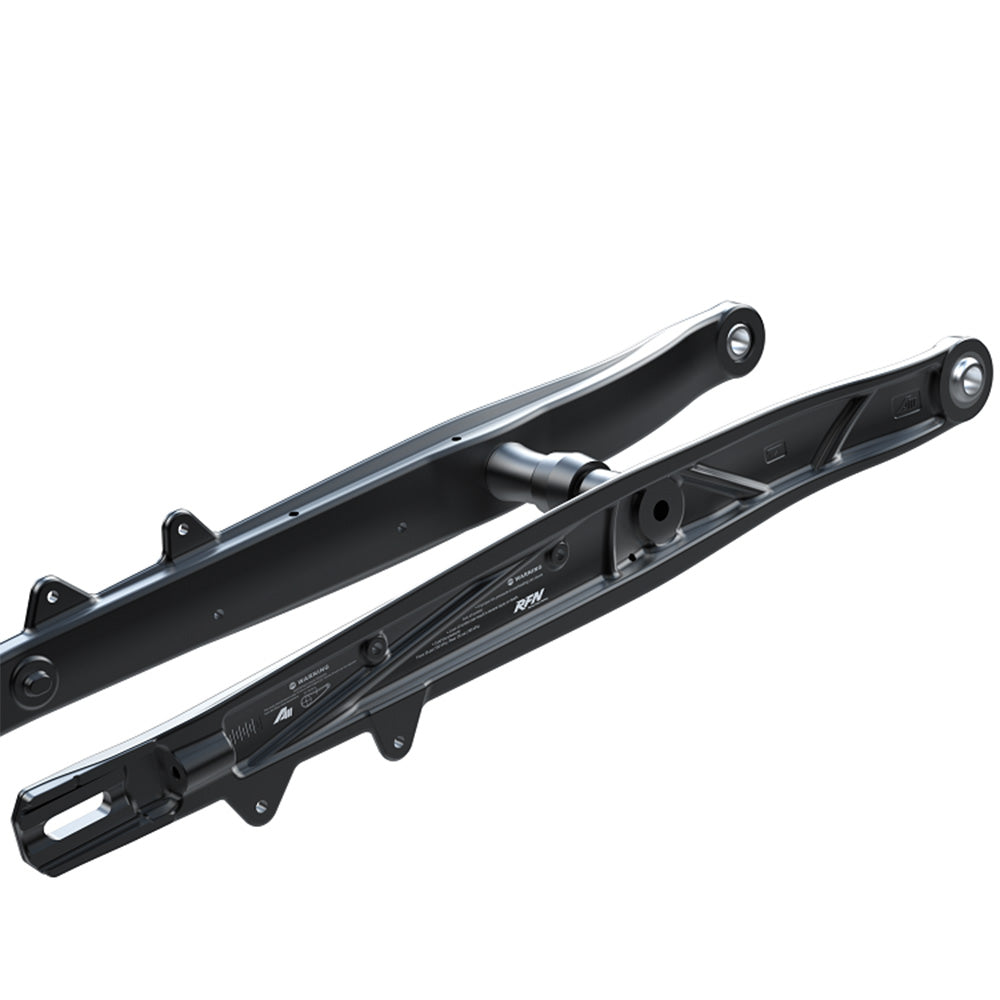

Rear suspension
Travel: 75mm
Type: 240mm shock ,Compression damping / rebound damping adjustable + Spring preload adjustable.
Regulatory
Classification: off-road
License: CE / FCC
Ride modes
Ride mode 1:Turtle Mode: The Ultimate Energy-Saving Exploration Mode. Current Limit: 35A. Battery Life: 3.5 Hours
Ride mode 2: Rabbit Mode: Endurance or Active Off-Road Riding. Current Limit: 85A. Riding Time: 1-2 Hours
Ride mode 3: Rocket Mode: Catapult start mode, peak current 150A, single 9 seconds
Ride mode 4: Reverse mode: Limited to 9 km/h
Speed & Range
Range: 140 Km (Test data - Load: 75 Kg, 25 Km/h uniform speed, ambient temperature: 25 °C, flat pavement, standard tires, standard tire pressure).
Weight
Battery: 15 kg
Dry: 74 kg
Max. permittable load: 199kg
G.W.: 96KG (carton plus iron frame)
G.W.: 98KG (carton plus board)

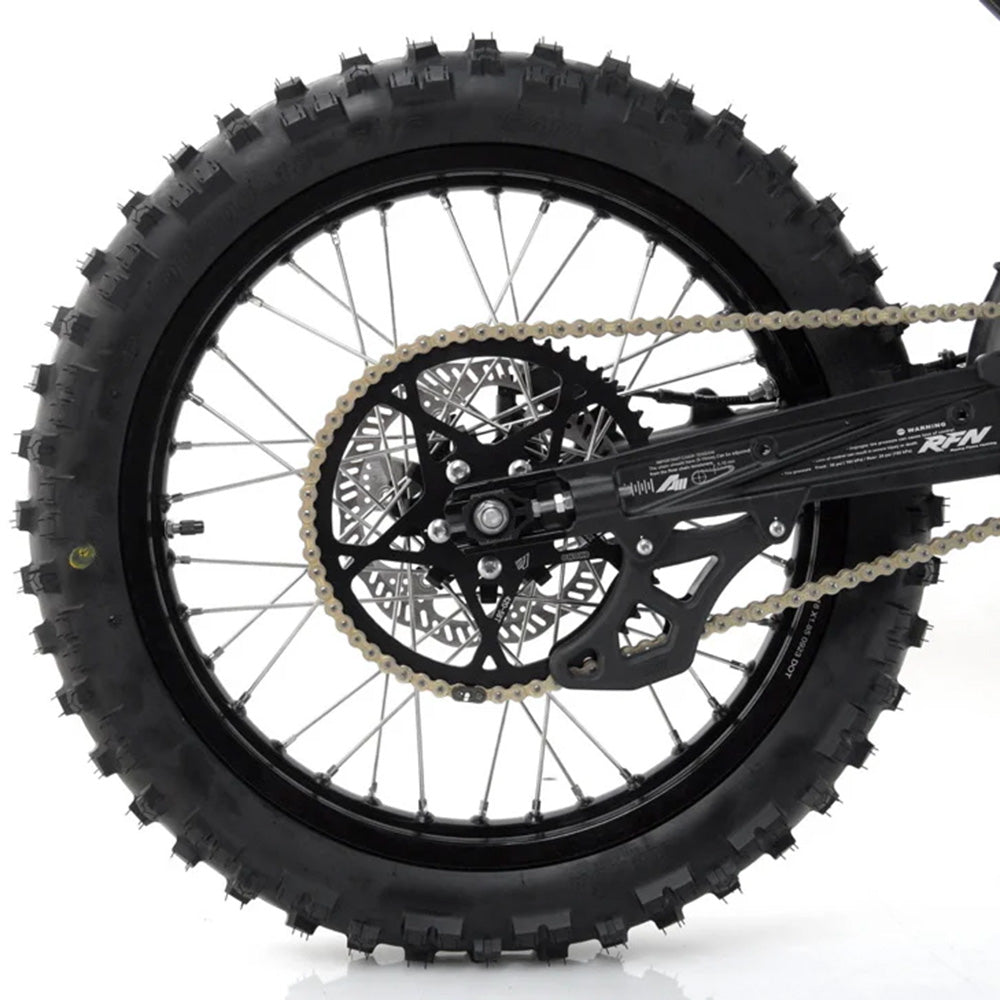

Wheels & Tires
Hubs: Forged and CNC aluminium RFN hubs with 20mm axle
Rims: F 19"/ R 18" (Motorcycle standard) re-inforced, Straight Pull Spokes, 7116 aluminium
Tires: F: Kenda K783 70/100-19 off-road , R:Kenda K783 90/100-18 off-road
Specification
Vehicle dimension : 1937 x 770 x 1080mm
Vehicle packing size : 1695 x 325 x 855mm
